1049_0 - PhidgetSpatial 0/0/3

Be the first to review this product

Availability: In stock

Regular Price: €80.00

Special Price €59.95

OR

Quick Overview

The 1049 measures static and dynamic acceleration in 3 axes, up to 5g, and provides a high sampling speed of up to 1000 samples per second.
1049_0 - PhidgetSpatial 0/0/3

More Views

  • 1049_0 - PhidgetSpatial 0/0/3

Details

Product Features


This spatial board had a 3-axis, ±5g accelerometer and connects to your computer via USB.

Product Description

The 1049 - PhidgetSpatial 0/0/3 measures static and dynamic acceleration in 3 axes, up to 5g, and provides a high sampling speed of up to 1000 samples per second.

Each accelerometer axis is calibrated at the factory for cross-axis misalignment, sensitivity to positive and negative acceleration, and offset.

The 1049 can be used to:

  • Sense tilt in remotely operated vehicles.
  • Capture motion input for gaming or for Human Interface Research.
  • Capture long term vibration data to help with the analysis of machinery performance.
  • Detect movement or presence by measuring structural vibration.


Product Specifications


Accelerometer

Acceleration Measurement Resolution 3.7 mg
Acceleration Bandwidth 110 Hz
Acceleration Measurement Max ± 5 g
Axis 0 Noise Level (X-Axis) 2 mg
Axis 1 Noise Level (Y-Axis) 2 mg
Axis 2 Noise Level (Z-Axis) 2 mg

Board

API Object Name Spatial
Sampling Speed Min 1 s/sample
Sampling Speed Max 1 ms/sample
Sampling Speed Min (Webservice) 1 s/sample
Sampling Speed Max (Webservice) 16 ms/sample
USB Voltage Min 4.4 V DC
USB Voltage Max 5.3 V DC
Current Consumption Max 22 mA
USB Speed Full Speed
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C


Comes packaged with

  • A 3018 - Mini-USB Cable 180cm
  • A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)


Resources




Enclosure

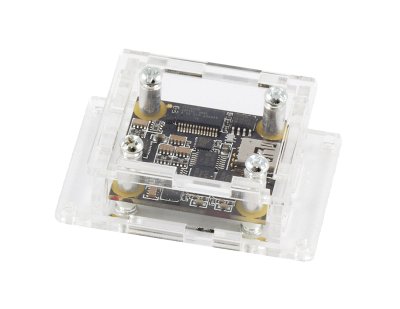

You can protect your board by purchasing the 3811 - Acrylic Enclosure for the 1049.

3811

Additional Information

SKU ES000020
Manufacturer Phidgets
